Angular velocity is the rate at which an object rotates or revolves about an axis, measured as the change in angular displacement over a period of time.

To calculate it, the primary formula used is ω = Δθ / Δt, where ω is the angular velocity, Δθ is the change in angle, and Δt is the change in time. The angular velocity of Earth, with respect to its own rotational axis, is calculated by considering its full rotation of 2π radians over a period of approximately 24 hours.

This calculation yields a constant value of approximately 7.292 x 10⁻⁵ radians per second for any point on the planet’s surface.

Fundamental Concepts of Angular Velocity

In physics, motion is not limited to linear travel; objects also rotate. Angular velocity is the fundamental measure used to describe this rotational motion.

Defining Angular Velocity

Angular velocity, represented by the Greek letter omega (ω), is a vector quantity that specifies the rotational speed of an object and the direction of its spin. In simpler terms, it answers the question: “How fast is it turning?” The standard unit for measuring angular velocity is radians per second (rad/s), as radians provide a direct mathematical link between angular and linear motion.

The Relationship with Linear Velocity

It is important to distinguish angular velocity from linear velocity. While angular velocity describes the rate of rotation for the entire rigid object, linear velocity (v) describes how fast a single point on that object is moving along its circular path. A point farther from the center of rotation moves faster (has a higher linear velocity) than a point closer to the center, even though both have the same angular velocity. The relationship is given by the formula v = rω, where r is the radius from the axis of rotation.

How to Calculate Angular Velocity

There are several standard formulas used to determine the angular velocity of an object, depending on the information available.

The Primary Formula

The most direct way to calculate angular velocity is by measuring the change in angle over time. This provides the average angular velocity over that interval.

The formula is:

ω = Δθ / Δt

• ω is the angular velocity.
• Δθ (delta theta) is the angular displacement, or the change in the angle of the object.
• Δt (delta t) is the time interval over which the angle changes.

Calculation Using Frequency or Period

In many physical systems, rotation is cyclical. In such cases, angular velocity can be calculated from two related properties: period and frequency.

• Period (T): The time it takes to complete one full revolution (2π radians). The formula is ω = 2π / T.
• Frequency (f): The number of revolutions completed per unit of time. The formula is ω = 2πf.

Calculating the Angular Velocity of Earth

The rotation of the Earth on its axis is a classic example of angular velocity. Because the Earth rotates as a rigid body, every point on its surface—from the equator to the poles—completes one full circle in the same amount of time, and thus shares the same angular velocity.

The Earth’s Rotational Parameters

To perform the calculation, we use the known rotational period of the planet.

• The angular displacement (Δθ) for one complete rotation is 360 degrees, which is equivalent to 2π radians.
• The time interval (Δt), known as the sidereal day, is the time it takes for the Earth to rotate 360 degrees relative to the stars. This period is approximately 23 hours, 56 minutes, and 4.1 seconds.

Step-by-Step Calculation

Using these values, we can calculate the angular velocity of Earth.

1. Convert the period (T) into seconds.
   T = (23 hours × 3600 s/hr) + (56 min × 60 s/min) + 4.1 s = 82800 + 3360 + 4.1 = 86,164.1 seconds.
2. Identify the angular displacement (Δθ).
   For one full rotation, Δθ = 2π radians.
3. Apply the formula using the period.
   ω = 2π / T
4. Substitute the values and calculate.
   ω = 2π / 86,164.1 s ≈ 7.2921 x 10⁻⁵ rad/s

For most general applications, using an approximation of 24 hours (86,400 seconds) is common, which yields a very close value of 7.272 x 10⁻⁵ rad/s.

Frequently Asked Questions

What is the difference between angular velocity and angular speed?

Angular speed is the magnitude (the numerical value) of the angular velocity. Angular velocity is a vector, meaning it also has a direction, which is typically described by the right-hand rule along the axis of rotation. For many calculations, the terms are used interchangeably when only the rate of rotation is considered.

Is the Earth’s angular velocity constant everywhere on its surface?

Yes. Since the Earth rotates as a single rigid body, every point completes a 360-degree turn in the same amount of time. Therefore, the angular velocity is the same whether you are at the equator or near one of the poles. However, the linear velocity is greatest at the equator and zero at the poles.

How does the Earth’s angular velocity affect us?

The Earth’s rotation creates the Coriolis effect, an inertial force that deflects moving objects (like air currents, ocean currents, and projectiles) to the right in the Northern Hemisphere and to the left in the Southern Hemisphere.

• Percent Deviation Calculator
• Turning Radius Calculator

Related

The post Angular Velocity Calculator appeared first on Exam Fitter.

To calculate the angle of elevation, you need to know the vertical height (the opposite side) and the horizontal distance (the adjacent side) from the object. The calculation relies on the trigonometric tangent function. The angle of elevation is found by taking the inverse tangent of the ratio of the height divided by the distance.

This relationship is expressed in the formula: Angle of Elevation (θ) = tan⁻¹(Height / Distance). This method allows for the determination of the angle from which an object is viewed relative to the horizontal plane.

The Fundamental Concepts

Before performing the calculation, it is essential to have a clear understanding of the geometric principles involved. Real-world scenarios involving the angle of elevation can be modeled using a right-angled triangle.

What is the Angle of Elevation?

The angle of elevation is the angle formed between a horizontal line and the line of sight from an observer to an object that is positioned at a higher level. It is always measured upwards from the horizontal. For instance, the angle formed when you look up from the ground to the top of a flagpole is the angle of elevation. The key components are the observer’s horizontal line of sight, the object being viewed, and the imaginary line connecting the observer’s eye to the object.

The Right Triangle Model

The relationship between an observer, an object, and the ground naturally forms a right-angled triangle. The sides of this triangle are defined as follows:

• The vertical height of the object above the observer’s horizontal line of sight is the Opposite side.
• The horizontal distance between the observer and the object is the Adjacent side.
• The direct line of sight from the observer to the object is the Hypotenuse.

The Trigonometric Basis for Calculation

The relationship between the sides and angles of a right triangle is defined by trigonometric functions. The mnemonic SOH-CAH-TOA helps recall these relationships: Sine = Opposite/Hypotenuse, Cosine = Adjacent/Hypotenuse, and Tangent = Opposite/Adjacent. Since problems involving the angle of elevation typically provide the height and distance, the tangent function is the most applicable.

The Formula for the Angle of Elevation

The primary formula derived from the tangent function is:

tan(θ) = Opposite / Adjacent

Here, θ represents the angle of elevation. To solve for the angle itself, we must isolate it by using the inverse tangent function, also known as arctan or tan⁻¹. This function reverses the tangent operation, giving us the angle when the ratio of the sides is known.

Therefore, the definitive formula to calculate the angle of elevation is:

θ = tan⁻¹(Height / Distance)

Step-by-Step Calculation Examples

Applying the formula is a straightforward process once the variables are identified.

Example 1: Finding the Angle of Elevation

An observer is standing 50 meters away from the base of a tall building. The height of the building is 80 meters. Let’s calculate the angle of elevation from the observer to the top of the building.

1. Identify the known values:

• Height (Opposite) = 80 meters
• Distance (Adjacent) = 50 meters

2. Set up the ratio for the tangent function:

• tan(θ) = 80 / 50 = 1.6

3. Apply the inverse tangent function to find the angle:

• θ = tan⁻¹(1.6)

4. Calculate the result using a scientific calculator:

• θ ≈ 57.99 degrees

The angle of elevation to the top of the building is approximately 57.99 degrees.

Example 2: Finding the Height Using the Angle

A surveyor measures the angle of elevation to the top of a hill to be 25 degrees. The surveyor is standing 200 meters from the base of the hill. We can find the height of the hill.

1. Rearrange the formula to solve for Height:

• Height = Distance × tan(θ)

2. Substitute the known values:

• Height = 200 × tan(25°)

3. Calculate the result:

• Height ≈ 200 × 0.4663
• Height ≈ 93.26 meters

The height of the hill is approximately 93.26 meters.

Frequently Asked Questions

What is the difference between the angle of elevation and the angle of depression?

The angle of elevation is measured upwards from the horizontal to an object above the observer. The angle of depression is measured downwards from the horizontal to an object below the observer. Geometrically, they are congruent if measured from reciprocal positions.

What units should be used for height and distance?

The height and distance must be in the same units for the ratio to be correct. Whether you use meters, feet, or kilometers, as long as both measurements are consistent, the resulting angle will be accurate.

What mode should my calculator be in for this calculation?

Your calculator must be in Degree mode to get the answer in degrees. If it is in Radian mode, the result will be given in radians, which is a different unit for measuring angles.

Does the observer’s own height matter?

In precise calculations, yes. The angle of elevation is measured from the observer’s eye level. If the problem gives the total height of an object from the ground, you may need to subtract the observer’s height to find the height of the ‘opposite’ side of the triangle. For many textbook problems, the observer’s height is considered negligible and is treated as a single point on the ground.

The post Angle of Elevation Calculator appeared first on Exam Fitter.

Mole conversions are a foundational quantitative skill in chemistry that allows for the translation between the macroscopic world of measurable mass and the microscopic world of atoms and molecules. To perform mole conversions, one must understand three core concepts: the mole itself, Avogadro's number, and molar mass.

By using Avogadro's number (6.022 x 10²³) as a conversion factor, you can move between the number of moles and the number of particles (molecules, atoms).

Similarly, using a substance's molar mass (in g/mol), you can convert between the mass of a substance and its number of moles. These relationships form the basis for stoichiometric calculations in chemical reactions.

The Core Concepts: Mole and Avogadro's Number

At the heart of all chemical calculations is the concept of the mole, which provides a consistent method for counting vast numbers of particles.

Defining the Mole

The mole, abbreviated as mol, is the SI unit for the amount of a substance. It represents a specific, fixed quantity of particles. Just as a "dozen" always means 12 of something, a "mole" always means the same number of elementary entities, whether they are atoms, molecules, ions, or electrons. This standard allows chemists to work with manageable numbers when dealing with the incredibly large quantities of particles involved in reactions.

Avogadro's Number

The specific quantity of particles in one mole is known as Avogadro's number. Its value is experimentally determined to be approximately:

6.022 x 10²³ particles/mol

This immense number serves as the essential conversion factor that links the number of moles of a substance to the actual number of molecules or atoms present. For example, one mole of water (H₂O) contains 6.022 x 10²³ molecules of water, and one mole of iron (Fe) contains 6.022 x 10²³ atoms of iron.

Molar Mass: The Bridge Between Mass and Moles

While Avogadro's number connects moles to particles, molar mass connects moles to a property we can easily measure in a lab: mass.

What is Molar Mass?

Molar mass is defined as the mass of one mole of a substance. It is expressed in units of grams per mole (g/mol). The molar mass provides the critical link needed to convert from the mass of a sample, measured on a balance, to the amount of substance in moles.

• For an element, the molar mass is numerically equal to its atomic weight found on the periodic table. For example, the atomic weight of Carbon (C) is 12.011 amu, so its molar mass is 12.011 g/mol.
• For a compound, the molar mass is the sum of the molar masses of all the atoms in its chemical formula. For water (H₂O), it would be (2 × molar mass of H) + (1 × molar mass of O).

How to Perform Mole Conversions

Mole conversions can be broken down into a few key types, all of which use either Avogadro's number or molar mass as a conversion factor.

Converting Between Moles and Number of Molecules

This is a direct application of Avogadro's number.

• To find the number of molecules from moles:
  Number of Molecules = (Number of Moles) × (6.022 x 10²³ molecules/mol)
• To find the number of moles from molecules:
  Number of Moles = (Number of Molecules) / (6.022 x 10²³ molecules/mol)

Converting Between Mass and Moles

This conversion uses the molar mass of the substance.

• To find the mass from moles:
  Mass (g) = (Number of Moles) × (Molar Mass in g/mol)
• To find the moles from mass:
  Number of Moles = (Mass in g) / (Molar Mass in g/mol)

Multi-Step Conversion: Mass to Molecules

Often, it is necessary to perform a two-step conversion to get from a measured mass to the number of individual molecules. This process uses both molar mass and Avogadro's number, with the mole as the central intermediate unit. The pathway is always:

Mass → Moles → Number of Molecules

Frequently Asked Questions

Why is the mole concept important in chemistry?

The mole allows chemists to scale up from the atomic level to the macroscopic level. It provides a practical link between the mass of a substance and the number of particles it contains, which is essential for understanding and predicting the outcomes of chemical reactions according to balanced equations.

What is the difference between molar mass and molecular weight?

Molar mass is the mass of one mole of a substance, with units of grams per mole (g/mol). Molecular weight (or formula weight) is the mass of a single molecule, with units of atomic mass units (amu). While they are numerically equivalent, they refer to different scales.

The post Molecules to Moles Calculator appeared first on Exam Fitter.

To calculate percent deviation, you need two values: an experimental (or observed) value and a theoretical (or accepted) value. The process involves finding the absolute difference between these two values, dividing that difference by the theoretical value, and then multiplying the result by 100 to express it as a percentage.

This calculation provides a clear measure of the discrepancy between a measured result and a known standard, which is a fundamental practice for evaluating accuracy in scientific and technical fields.

What is Percent Deviation?

Percent deviation is a quantitative measure that expresses the magnitude of the difference between an experimental measurement and a true or accepted value. It is a tool used widely across science, engineering, and statistics to assess the accuracy of a measurement. A low percent deviation signifies that the observed value is very close to the accepted value, indicating a high degree of accuracy.

Conversely, a high percent deviation points to a significant discrepancy, which may suggest experimental error, flaws in methodology, or limitations of the measuring instruments.

The Purpose of the Calculation

In experimental contexts, results rarely match theoretical predictions perfectly. Percent deviation provides a standardized way to quantify this inconsistency. It helps researchers and students answer a critical question: how far off was my result? By contextualizing the raw difference as a percentage of the true value, it makes the extent of the error more intuitive and comparable across different experiments.

The Percent Deviation Formula

The calculation is governed by a single, universally accepted formula. It is designed to produce a positive percentage that reflects the magnitude of the error irrespective of whether the experimental value was higher or lower than the theoretical value.

Components of the Formula

The formula is expressed as:

Percent Deviation = [ |Experimental Value – Theoretical Value| / Theoretical Value ] × 100%

Let’s examine each component:

• Experimental Value: This is the value that was measured or observed during an experiment.
• Theoretical Value: This is the widely accepted, true, or ideal value, often derived from established scientific principles, previous research, or reference materials.
• | … |: These vertical bars denote the absolute value. This mathematical operation ensures that the difference between the two values is treated as a non-negative quantity.

Step-by-Step Calculation Guide

Following a structured process ensures that you can accurately and reliably calculate percent deviation for any given set of data.

Example: Measuring Acceleration Due to Gravity

Imagine a student conducts an experiment to measure the acceleration due to gravity (g). The accepted theoretical value for g is approximately 9.81 m/s². The student’s experiment yields a result of 9.70 m/s².

1. Identify your values.

• Experimental Value = 9.70 m/s²
• Theoretical Value = 9.81 m/s²

2. Calculate the difference between the two values.

• 9.70 – 9.81 = -0.11

3. Take the absolute value of the difference.

• |-0.11| = 0.11

4. Divide the absolute difference by the theoretical value.

• 0.11 / 9.81 ≈ 0.01121

5. Multiply the result by 100 to convert it to a percentage.

• 0.01121 × 100% = 1.121%

The student’s percent deviation is approximately 1.12%. This indicates their experimental result was very close to the accepted scientific value.

Percent Deviation vs. Percent Error

The terms percent deviation and percent error are often used interchangeably, and in many contexts, they refer to the same calculation described above.

However, a subtle distinction is sometimes made in more rigorous academic settings. “Percent error” is almost exclusively used when comparing a measured value to a known, true, or accepted standard. “Percent deviation” can sometimes be used to describe the variation of a single measurement from the average of a set of measurements.

For most practical applications, you can consider the terms synonymous.

Frequently Asked Questions

Why do we use the absolute value in the formula?

The absolute value is used to focus on the magnitude of the deviation, not its direction. It tells you how far off the measurement was, regardless of whether it was too high or too low. This provides a single, positive percentage that is easy to interpret as the size of the error.

What is considered a “good” percent deviation?

There is no universal answer. A “good” value is highly dependent on the context of the experiment. In high-precision fields like analytical chemistry, a deviation of less than 1% might be expected. In other fields, like ecology or sociology, experimental complexities might make a 10% or even 20% deviation acceptable.

What happens if the theoretical value is zero?

If the theoretical value is zero, you cannot calculate percent deviation using this formula because division by zero is mathematically undefined. This situation is very rare in the context of physical measurements where this formula is typically applied.

Can percent deviation be negative?

Using the standard formula that includes the absolute value, percent deviation will always be positive or zero. If the absolute value step is omitted, the result could be negative, which would indicate that the experimental value was lower than the theoretical value. However, the standard convention is to report it as a positive number.

How is percent deviation different from standard deviation?

Percent deviation and standard deviation are entirely different concepts. Percent deviation compares a single measurement to an external, accepted standard value to assess accuracy. Standard deviation, on the other hand, measures the amount of variation or dispersion within a set of data points relative to their own average, assessing the precision of the measurements.

The post Percent Deviation Calculator appeared first on Exam Fitter.

The marginal rate of substitution (MRS) is a central concept in microeconomic consumer theory that measures the rate at which a consumer is willing to substitute a small amount of one good for another, while maintaining the same overall level of utility or satisfaction.

You can calculate the marginal rate of substitution using two primary methods:

The first is a numerical approach that finds the average MRS between two distinct bundles of goods. The second is a calculus-based approach that determines the instantaneous MRS at a single point on an indifference curve, provided the consumer’s utility function is known.

What is the Marginal Rate of Substitution (MRS)?

In consumer choice theory, an indifference curve represents all combinations of two goods that provide a consumer with an equal level of satisfaction. The marginal rate of substitution is the absolute value of the slope of this indifference curve at any given point. It quantifies the consumer’s subjective valuation of one good in terms of the other.

For example, if the MRS of good X for good Y is 3, it means the consumer is willing to give up 3 units of good Y to obtain one additional unit of good X.

Method 1: Calculating MRS Between Two Points (The Numerical Approach)

This method is used when you have data for two different combinations of goods that lie on the same indifference curve. It calculates the average rate of substitution over the segment connecting these two points.

The Formula for the Numerical Method

The formula calculates the slope of the line connecting the two points (bundles) on the curve. Because the indifference curve slopes downward, the change in one good will be positive while the other is negative, resulting in a negative slope. We take the absolute value, or simply negate the result, to express the MRS as a positive number.

MRS = – (Change in Quantity of Good Y / Change in Quantity of Good X) = – (ΔY / ΔX)

Step-by-Step Calculation Example

Consider a student who derives utility from consuming coffee (Good X) and cookies (Good Y).

Point A: The student initially consumes 10 cookies (Y₁) and 2 coffees (X₁).

Point B: The student is equally happy consuming 4 cookies (Y₂) and 4 coffees (X₂).

1. Calculate the change in the quantity of Good Y (ΔY).
   ΔY = Y₂ – Y₁ = 4 – 10 = -6
2. Calculate the change in the quantity of Good X (ΔX).
   ΔX = X₂ – X₁ = 4 – 2 = 2
3. Apply the formula to find the MRS.
   MRS = – (ΔY / ΔX) = – (-6 / 2) = 3

The result of 3 means that, on average between points A and B, the student is willing to give up 3 cookies to get one more coffee.

Method 2: Calculating MRS at a Single Point (The Calculus Approach)

This is a more precise method used in theoretical economics to find the exact MRS at a specific point on the indifference curve. It requires knowing the consumer’s utility function, which is a mathematical representation of their preferences.

The Role of the Utility Function

A utility function, U(X,Y), assigns a level of utility to every possible bundle of goods (X,Y). The MRS is derived from the partial derivatives of this function, known as marginal utilities. The marginal utility of a good is the additional satisfaction gained from consuming one more unit of that good.

The Formula for the Calculus Method

The formula for the MRS is the ratio of the marginal utilities of the two goods.

MRS = Marginal Utility of Good X / Marginal Utility of Good Y = MUx / MUy

Step-by-Step Calculation Example

Let’s assume a consumer’s preferences for goods X and Y can be represented by a Cobb-Douglas utility function: U(X,Y) = X⁰.⁵Y⁰.⁵. We want to find the MRS at a point where the consumer has 9 units of Good X and 16 units of Good Y.

1. Find the Marginal Utility of X (MUx) by taking the partial derivative of U with respect to X.
   MUx = ∂U/∂X = 0.5X⁻⁰.⁵Y⁰.⁵
2. Find the Marginal Utility of Y (MUy) by taking the partial derivative of U with respect to Y.
   MUy = ∂U/∂Y = 0.5X⁰.⁵Y⁻⁰.⁵
3. Set up the MRS formula.
   MRS = MUx / MUy = (0.5X⁻⁰.⁵Y⁰.⁵) / (0.5X⁰.⁵Y⁻⁰.⁵) = Y/X
4. Substitute the quantities of X and Y from the specific point (X=9, Y=16) into the MRS formula.
   MRS = 16 / 9 ≈ 1.78

At this specific point, the consumer is willing to trade approximately 1.78 units of Good Y for one additional unit of Good X.

Key Properties of the Marginal Rate of Substitution

Understanding the characteristics of MRS is crucial for analyzing consumer behavior.

• The law of diminishing marginal rate of substitution states that as a consumer has more of Good X, they are willing to give up fewer units of Good Y to obtain one more unit of X. This is why indifference curves are typically convex to the origin.

Frequently Asked Questions

Why is the MRS generally positive if the slope is negative?

The slope of the indifference curve is indeed negative, reflecting the trade-off (to get more of one good, you must give up some of the other). However, economists typically refer to the MRS as a positive value by convention, representing the absolute value of the slope. This makes it easier to interpret as the rate of exchange.

What does a diminishing MRS mean?

A diminishing MRS means that a consumer’s willingness to substitute one good for another decreases as they consume more of it. For example, when you are very hungry, you might trade three video games for one pizza (MRS=3). If you have already eaten five pizzas, you might only trade one-tenth of a video game for another pizza (MRS=0.1).

Can the MRS be constant?

Yes. If two goods are perfect substitutes, the consumer is always willing to trade them at a constant rate. This results in an indifference curve that is a straight line, and the MRS is constant at all points. An example would be two different brands of bottled water that the consumer perceives as identical.

What is the MRS for perfect complements?

Perfect complements are goods consumed together in a fixed ratio, like left shoes and right shoes. The indifference curves are L-shaped. The MRS is undefined along the vertical and horizontal portions and zero or infinite at the corner, as the consumer is unwilling to substitute one for the other at all.

How does MRS relate to price ratio in consumer choice?

A rational consumer will maximize their utility by choosing a bundle of goods where their willingness to trade (MRS) is exactly equal to the market’s rate of trade (the price ratio, Px/Py). This point of tangency between the indifference curve and the budget line is known as the consumer equilibrium

The post Marginal Rate of Substitution Calculator appeared first on Exam Fitter.

Formal Charge in Chemistry

In chemistry, the formal charge is a theoretical charge assigned to an individual atom within a molecule or ion. It’s a tool used to track electron distribution in Lewis structures, helping chemists determine the most plausible or stable arrangement of atoms and electrons when multiple possibilities exist. The concept assumes that electrons in a covalent bond are shared perfectly equally between atoms, which is a useful simplification but not always a reflection of physical reality.

The primary goal of calculating formal charge is to identify the Lewis structure where the atoms have formal charges as close to zero as possible.

The Formal Charge Formula

The calculation is straightforward and relies on a simple formula that compares the electrons an atom “owns” in a molecule to the electrons it has as a neutral, free atom.

Breaking Down the Formula

The formula is expressed as:

FC = V – N – (B/2)

Let’s look at what each variable represents:

• FC (Formal Charge): The final calculated charge for the atom in question.
• V (Valence Electrons): The number of valence electrons the atom has in its neutral state, as found on the periodic table.
• N (Non-bonding Electrons): The number of valence electrons on the atom that are not involved in bonding (i.e., the electrons in lone pairs).
• B (Bonding Electrons): The total number of electrons that the atom shares in covalent bonds with other atoms.

How to Calculate Formal Charge: Step-by-Step Examples

The best way to understand the process is to walk through a few examples. A correct Lewis structure is essential before you begin.

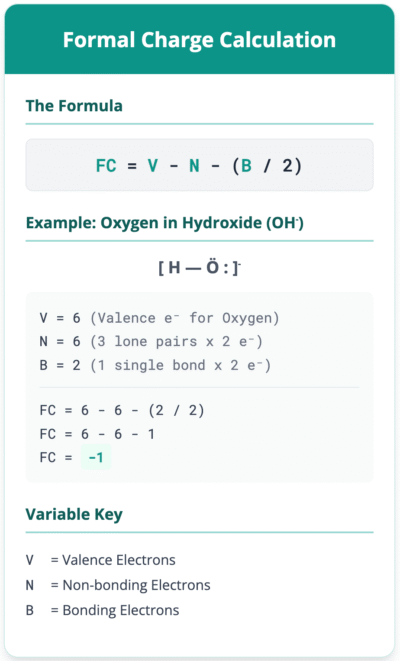

Example 1: The Oxygen Atom in a Hydroxide Ion (OH⁻)

Let’s find the formal charge of the oxygen atom in the hydroxide ion.

1. Valence Electrons (V): A neutral oxygen atom is in Group 16, so it has 6 valence electrons.
2. Non-bonding Electrons (N): In the Lewis structure, oxygen has three lone pairs. Each pair has 2 electrons, so there are 3 * 2 = 6 non-bonding electrons.
3. Bonding Electrons (B): Oxygen forms one single covalent bond with hydrogen, which consists of 2 shared electrons.
4. Apply the Formula:

• FC = V – N – (B/2)
• FC = 6 – 6 – (2/2)
• FC = 6 – 6 – 1
• FC = -1

The formal charge on the oxygen atom in the hydroxide ion is -1.

Example 2: The Nitrogen Atom in an Ammonium Ion (NH₄⁺)

Now, let’s determine the formal charge of the central nitrogen atom in the ammonium ion.

1. Valence Electrons (V): A neutral nitrogen atom is in Group 15, so it has 5 valence electrons.
2. Non-bonding Electrons (N): In this structure, nitrogen has no lone pairs, so it has 0 non-bonding electrons.
3. Bonding Electrons (B): Nitrogen forms four single covalent bonds with four hydrogen atoms. The total number of shared electrons is 4 * 2 = 8.
4. Apply the Formula:

• FC = V – N – (B/2)
• FC = 5 – 0 – (8/2)
• FC = 5 – 0 – 4
• FC = +1

The formal charge on the nitrogen atom in the ammonium ion is +1.

Using Formal Charge to Predict the Best Molecular Structure

When you can draw more than one valid Lewis structure for a molecule (these are called resonance structures), formal charges help you decide which one is the most significant or stable contributor. The best structure generally follows these rules:

1. The structure with formal charges on all atoms closest to zero is preferred.
2. A structure with negative formal charges on the more electronegative atoms is more stable.
3. Structures that place adjacent atoms with like charges (e.g., +1 next to +1) are highly unfavorable.

Frequently Asked Questions (FAQs)

What is the difference between formal charge and oxidation state?

Formal charge and oxidation state are both bookkeeping tools for electrons, but they operate on different assumptions. Formal charge assumes electrons in a bond are shared perfectly equally (a pure covalent model). Oxidation state, conversely, assumes the more electronegative atom in a bond gets all the electrons (a pure ionic model). The reality for most bonds is somewhere in between.

Can the formal charge of an atom be a fraction?

No. The number of valence, non-bonding, and bonding electrons are always integers. Since the number of bonding electrons (B) in any stable molecule is always an even number, dividing it by 2 always results in an integer. Therefore, the final formal charge will always be an integer (e.g., -2, -1, 0, +1, +2).

Is the sum of all formal charges equal to the overall charge?

Yes, always. For a neutral molecule, the sum of the formal charges of all its atoms must be zero. For a polyatomic ion, the sum must equal the ion’s charge. This serves as an excellent way to double-check your calculations.

Why is it important to draw the correct Lewis structure first?

The calculation of formal charge is entirely dependent on the number of bonding and non-bonding electrons shown in a specific Lewis structure. If the Lewis structure is drawn incorrectly (e.g., with the wrong number of bonds or lone pairs on an atom), the resulting formal charges will also be incorrect.

The post Formal Charge Calculator appeared first on Exam Fitter.

Vehicle’s Turning Radius

The turning radius is a fundamental measure of a vehicle’s agility and maneuverability. In simple terms, it describes the smallest possible circle a vehicle can make when the steering wheel is turned to its maximum limit. A smaller turning radius means a vehicle is more nimble, allowing it to navigate tight city streets, execute U-turns easily, and maneuver into tricky parking spots with less effort.

The Core Concept and Its Importance

Imagine a car turning as sharply as it can. The path traced by the outer front wheel creates a circle. The radius of this circle is the vehicle’s turning radius. This metric is crucial for several reasons:

• Urban Driving: In congested cities, a tight turning radius is invaluable for navigating narrow lanes and making sharp turns at intersections.
• Parking: Vehicles with a smaller turning radius are significantly easier to park, especially in parallel parking situations or crowded parking lots.
• Off-Roading: For off-road vehicles, a good turning radius allows for better maneuvering around obstacles like trees and rocks on tight trails.
• Large Vehicles: For trucks, buses, and RVs, understanding the turning radius is critical for safe navigation and avoiding collisions with curbs, signs, and other vehicles.

The Formula Explained

The turning radius can be calculated with a simple geometric formula that relates the vehicle’s wheelbase to its steering angle.

Formula: R = L / sin(α)

Let’s break down each component:

• R (Turning Radius): This is the value we want to find—the distance from the center of the turning circle to the outer front wheel.
• L (Wheelbase): This is the distance between the center of the front wheels and the center of the rear wheels. It’s a fixed measurement for any given vehicle.
• α (Steering Angle): This is the angle of the front wheels relative to the straight-ahead position when the steering is at its maximum lock. A greater steering angle allows the wheels to turn more sharply, resulting in a smaller turning radius.

Calculation Examples

Let’s see the formula in action with a couple of practical examples.

Example 1: Calculating the Turning Radius

Suppose you have a typical sedan with the following specifications:

• Wheelbase (L): 2.7 meters
• Maximum Steering Angle (α): 35 degrees

1. Find the sine of the steering angle:
   sin(35°) ≈ 0.5736
2. Apply the formula:
   R = L / sin(α)
   R = 2.7 / 0.5736
3. Result:
   R ≈ 4.71 meters

The turning radius of this sedan is approximately 4.71 meters.

Example 2: Finding the Required Wheelbase

Imagine you are designing a vehicle that needs to have a turning radius of no more than 5 meters, and its steering system allows for a maximum angle of 40 degrees. What is the maximum possible wheelbase?

1. Rearrange the formula to solve for Wheelbase (L):
   L = R * sin(α)
2. Find the sine of the steering angle:
   sin(40°) ≈ 0.6428
3. Apply the formula:
   L = 5 * 0.6428
4. Result:
   L ≈ 3.21 meters

The vehicle’s wheelbase must be 3.21 meters or less to achieve the desired turning radius.

Typical Turning Radius Values (Approximate)

The turning radius can vary significantly between different classes of vehicles. Here is a general guide:

Frequently Asked Questions (FAQs)

What’s the difference between turning radius and turning circle?

The turning radius is the radius of the circle. The turning circle (or turning diameter) is the full diameter of that circle, which is simply twice the turning radius. Manufacturers often use “turning circle” in their specifications.

Does a shorter wheelbase always mean a better turning radius?

Generally, yes. If two vehicles have the same maximum steering angle, the one with the shorter wheelbase will have a tighter turning radius. This is why small city cars are so much more maneuverable than long pickup trucks.

How does steering angle affect maneuverability?

The steering angle is a critical factor. A larger maximum steering angle allows the wheels to turn more sharply, directly reducing the turning radius. Even a few extra degrees can make a noticeable difference in how nimble a car feels.

Can I improve my vehicle’s turning radius?

For most production vehicles, the turning radius is fixed by its design (wheelbase and steering system limitations). While modifications are technically possible (e.g., installing an angle kit on a drift car), it’s not a practical or recommended change for a daily-use vehicle as it can affect safety and alignment.

Why is turning radius so important for trucks and buses?

Large vehicles have a very long wheelbase, which naturally leads to a very large turning radius. Drivers must be acutely aware of this to make wide turns at corners and avoid hitting curbs or other objects. This phenomenon, known as “off-tracking,” is where the rear wheels follow a path significantly tighter than the front wheels.

The post Turning Radius Calculator appeared first on Exam Fitter.

These diagrams typically only show the valence (outermost) electron shell.

Representing Ionic Bonding

In ionic bonding, dot-and-cross diagrams show the transfer of electrons from a metal atom to a non-metal atom.

The key features when drawing dot-and-cross diagrams for ionic compounds are:

• The metal atom loses its outer shell electrons, and these are transferred to the non-metal atom.
• The resulting ions are drawn separately, often with the metal ion shown with an empty outer shell.
• Square brackets are placed around each ion.
• The charge on each ion is written at the top right-hand corner, outside the brackets.

For example, in sodium chloride, the sodium atom transfers its single outer electron to the chlorine atom to form Na⁺ and Cl⁻ ions, both with stable, full outer shells.

For a compound like magnesium oxide, the magnesium atom transfers two electrons to the oxygen atom, resulting in Mg²⁺ and O²⁻ ions.

Representing Covalent Bonding

For covalent molecules, dot-and-cross diagrams show how electrons are shared between non-metal atoms to form covalent bonds. The area where the electron shells overlap represents the shared pair of electrons, known as a bond pair. Pairs of outer electrons not involved in bonding are called lone pairs.

Single Covalent Bonds

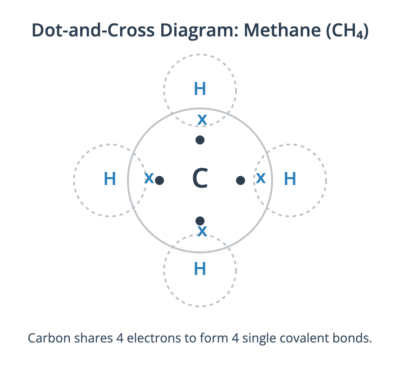

A single covalent bond is formed when two atoms share one pair of electrons. Many common molecules contain single bonds, such as methane (CH₄), where a central carbon atom shares a pair of electrons with each of four hydrogen atoms.

Multiple Covalent Bonds

Atoms can share more than one pair of electrons to achieve a stable octet.

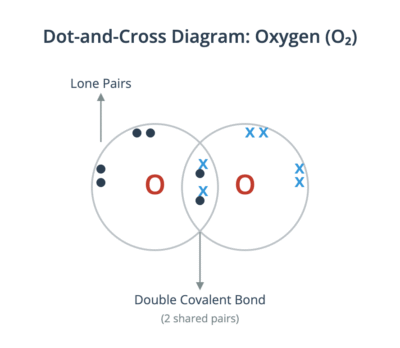

• A double covalent bond is the sharing of two pairs of electrons, as seen in an oxygen molecule (O₂).
• A triple covalent bond is the sharing of three pairs of electrons, as seen in a nitrogen molecule (N₂).

Molecules with Exceptions to the Octet Rule

Dot-and-cross diagrams can also represent molecules that do not follow the octet rule.

• Some central atoms can be electron-deficient, having fewer than eight electrons in their outer shell. Boron trifluoride (BF₃) is a common example, where boron only has six outer electrons.
• Elements in Period 3 and below can expand their octet by using available d-orbitals. Sulfur hexafluoride (SF₆) is an example where the central sulfur atom has twelve electrons in its outer shell.

The post Dot-and-Cross Diagrams Notes | CIE | A-Level Chemistry appeared first on Exam Fitter.

Ionic Bonding

Ionic bonding is the electrostatic force of attraction between positively charged ions (cations) and negatively charged ions (anions), which are arranged in a giant crystal lattice. This type of bonding typically occurs between metals and non-metals.

Metal atoms lose their outer shell electrons to form stable, positively charged ions, achieving the electronic configuration of a noble gas. Non-metal atoms gain these electrons to form stable, negatively charged ions, also achieving a noble gas configuration. The transfer of electrons is a key characteristic of ionic bond formation.

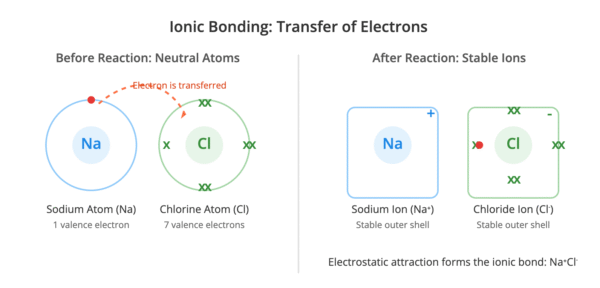

For example, in sodium chloride (NaCl), a sodium atom transfers its single outer electron to a chlorine atom. This results in a sodium ion (Na⁺) and a chloride ion (Cl⁻).

In magnesium oxide (MgO), a magnesium atom transfers its two outer electrons to an oxygen atom, forming an Mg²⁺ ion and an O²⁻ ion. In calcium fluoride (CaF₂), one calcium atom transfers one electron to each of two fluorine atoms, creating one Ca²⁺ ion and two F⁻ ions.

Covalent Bonding

A covalent bond is formed by the electrostatic attraction between the positive nuclei of two atoms and a shared pair of electrons. This type of bonding occurs between non-metal atoms.

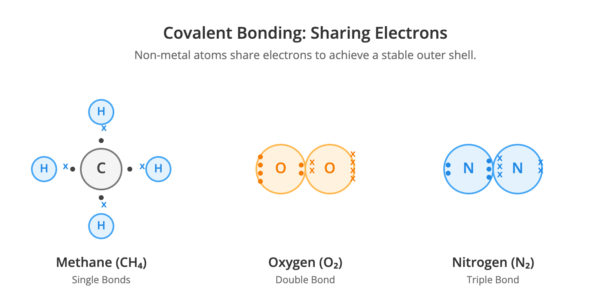

Single, Double, and Triple Covalent Bonds

Atoms share electrons to achieve a stable outer shell, similar to that of a noble gas.

• A single covalent bond consists of one shared pair of electrons (e.g., in H₂, CH₄, H₂O, NH₃).
• A double covalent bond involves two shared pairs of electrons (e.g., in O₂, CO₂).
• A triple covalent bond is formed by sharing three pairs of electrons (e.g., in N₂).

Double bonds are generally shorter and stronger than single bonds between the same two elements.

Exceptions to the Octet Rule

Some molecules do not follow the standard octet rule for the central atom.

• Electron-deficient molecules, such as boron trifluoride (BF₃), have a central atom with fewer than eight electrons in its outer shell.
• Expansion of the octet can occur for elements in Period 3 and below. These elements can use their d-orbitals to accommodate more than eight outer-shell electrons. Examples include phosphorus pentachloride (PCl₅) with ten outer electrons and sulfur hexafluoride (SF₆) with twelve.

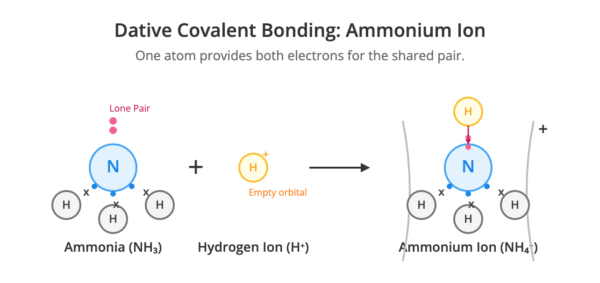

Dative (Co-ordinate) Covalent Bonding

A dative covalent bond is a type of covalent bond where one atom provides both of the shared electrons. This requires one atom to have a lone pair of electrons and another atom to have an empty orbital. An example is the formation of the ammonium ion (NH₄⁺), where the lone pair on the nitrogen atom in an ammonia molecule (NH₃) forms a bond with a hydrogen ion (H⁺).

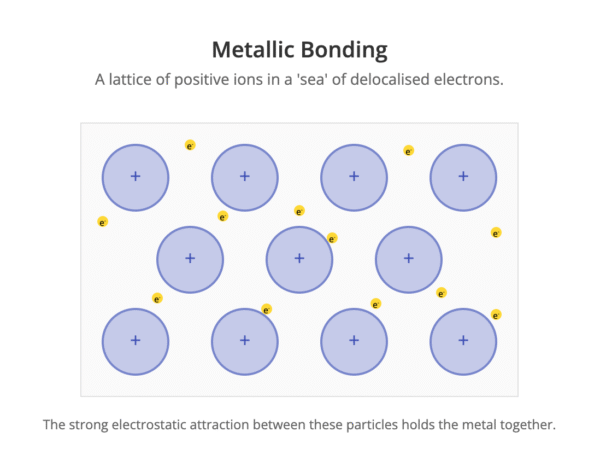

Metallic Bonding

Metallic bonding is the electrostatic attraction between a lattice of positive metal ions and a ‘sea’ of delocalised electrons. The outer shell electrons from the metal atoms are no longer associated with any single atom and are free to move throughout the entire metal structure. This strong, non-directional bonding accounts for the high melting points of most metals and their ability to conduct electricity and heat.

The post Types of Bonding Revision Notes | CIE | A-Level Chemistry appeared first on Exam Fitter.

The Molar Volume of a Gas

Avogadro’s hypothesis states that equal volumes of any gas, measured under the same conditions of temperature and pressure, contain an equal number of molecules. This principle allows us to relate the volume of a gas directly to the number of moles present.

The molar gas volume is the volume occupied by one mole of any gas. At room temperature and pressure (r.t.p.), which is defined as approximately 20 °C and 1 atmosphere, the molar gas volume is 24.0 dm³ mol⁻¹.

This means that 24.0 dm³ of carbon dioxide, 24.0 dm³ of hydrogen, or 24.0 dm³ of any other gas at r.t.p. all contain exactly one mole of gas molecules.

Calculations Using Molar Gas Volume at r.t.p.

The relationship between the number of moles and the volume of a gas at r.t.p. can be expressed with two key formulas. These are fundamental for calculations involving gas volumes.

To find the volume of a gas from a known number of moles:

Volume of gas (in dm³) = Number of moles × 24.0

To find the number of moles of a gas from a known volume:

Number of moles = Volume of gas (in dm³) / 24.0

Example Calculation 1: Finding Volume from Mass

Calculate the volume occupied by 13.2 g of carbon dioxide gas, CO₂, at r.t.p.

(Aᵣ values: C = 12.0, O = 16.0)

Step 1: Calculate the molar mass of CO₂.

Molar mass = 12.0 + (2 × 16.0) = 44.0 g mol⁻¹

Step 2: Calculate the number of moles of CO₂.

Number of moles = Mass / Molar mass = 13.2 g / 44.0 g mol⁻¹ = 0.300 mol

Step 3: Calculate the volume of the gas.

Volume = Number of moles × 24.0 dm³ mol⁻¹ = 0.300 mol × 24.0 dm³ mol⁻¹ = 7.20 dm³

Example Calculation 2: Finding Mass from Volume

Calculate the mass of 180 cm³ of methane gas, CH₄, at r.t.p.

(Aᵣ values: C = 12.0, H = 1.0)

Step 1: Convert the volume to dm³.

Volume in dm³ = 180 cm³ / 1000 = 0.180 dm³

Step 2: Calculate the number of moles of CH₄.

Number of moles = Volume / 24.0 dm³ mol⁻¹ = 0.180 dm³ / 24.0 dm³ mol⁻¹ = 0.00750 mol

Step 3: Calculate the molar mass of CH₄.

Molar mass = 12.0 + (4 × 1.0) = 16.0 g mol⁻¹

Step 4: Calculate the mass of the gas.

Mass = Number of moles × Molar mass = 0.00750 mol × 16.0 g mol⁻¹ = 0.120 g

Gas Volumes and Stoichiometry

According to Avogadro’s hypothesis, the mole ratio in a balanced chemical equation is equivalent to the volume ratio for reacting gases, provided the volumes are measured at the same temperature and pressure. This allows for direct stoichiometric calculations involving gas volumes.

For example, in the synthesis of ammonia:

N₂(g) + 3H₂(g) → 2NH₃(g)

The mole ratio is 1 : 3 : 2.

This means that 1 volume of nitrogen reacts with 3 volumes of hydrogen to produce 2 volumes of ammonia. For instance, 10 cm³ of N₂ will react exactly with 30 cm³ of H₂ to produce 20 cm³ of NH₃.

Example Calculation 3: Deducing a Molecular Formula

When 40 cm³ of a gaseous hydrocarbon was completely combusted with 240 cm³ of oxygen (an excess), the resulting gas mixture had a volume of 200 cm³ after cooling. After passing this mixture through aqueous sodium hydroxide, the volume reduced to 80 cm³. All volumes were measured at r.t.p. Deduce the molecular formula of the hydrocarbon.

Step 1: Determine the volume of products.

The contraction in volume when passed through NaOH is due to the removal of CO₂.

Volume of CO₂ produced = 200 cm³ – 80 cm³ = 120 cm³

The remaining 80 cm³ must be the excess, unreacted oxygen.

Step 2: Determine the volume of oxygen that reacted.

Volume of O₂ reacted = Initial volume of O₂ – Excess volume of O₂

Volume of O₂ reacted = 240 cm³ – 80 cm³ = 160 cm³

Step 3: Find the simplest whole number ratio of reacting volumes.

Let the hydrocarbon be CₓHᵧ.

CₓHᵧ(g) + O₂(g) → CO₂(g)

Reacting volumes: 40 cm³ : 160 cm³ : 120 cm³

Simplest ratio: 1 : 4 : 3

Step 4: Use the ratios to find x and y.

From the ratio, the balanced equation starts:

1CₓHᵧ(g) + 4O₂(g) → 3CO₂(g) + zH₂O(l)

From balancing the carbon atoms: x = 3.

From balancing the oxygen atoms:

Total oxygen on left = 4 × 2 = 8 atoms.

Oxygen in CO₂ = 3 × 2 = 6 atoms.

Therefore, oxygen atoms in water = 8 – 6 = 2 atoms. This means z = 2.

1C₃Hᵧ(g) + 4O₂(g) → 3CO₂(g) + 2H₂O(l)

From balancing the hydrogen atoms: y = 2 × 2 = 4.

The molecular formula of the hydrocarbon is C₃H₄.

The post Calculations involving gas volumes notes | CIE | A-Level appeared first on Exam Fitter.
